contour - Extract contours of the lumen and wall for each axial slice

This step outputs 2 contours per polar image computed during the previous step: the contour of the lumen and the contour of the wall of the vessel. The estimation of the distance between the boundary of the lumen/wall and the center is estimated for each ray in the polar image by a convolutional neural network.

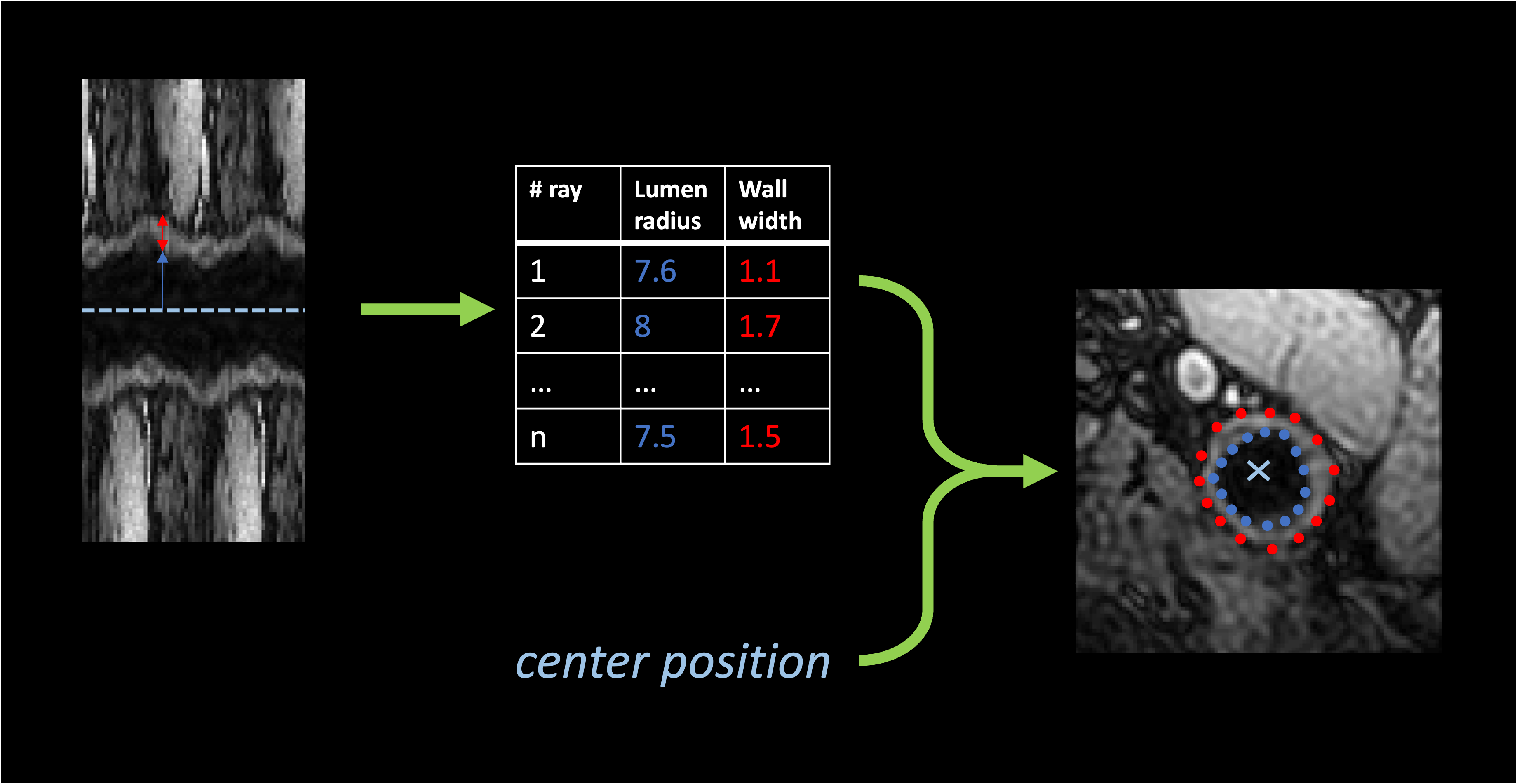

Example of contours. For each ray the radius of the lumen and the width of the wall is estimated. This allows to build contours of n_angles points for each object (lumen and wall).

This step also gives a measure of the uncertainty by sampling multiple contours for each object. These contours are sampled up to 3 types of different sources:

• center uncertainty: if multiple_centers option was chosen in polar_transform, one contour is extracted per center.
• model uncertainty: one contour is extracted per model in stored in CONTOUR_MODEL_DIR.
• dropout evaluation: if the model includes dropout layers, these layers can be activated during inference to sample different results with the same model, by computing a series of outputs for the same image.

For each axial slice a point cloud is extracted. From this (noisy) point cloud a contour is extracted in the polar domain by fitting a polynomial function to predict the ray from the sine and cosine of the angle of each point. Then n_angles points are extracted using this new model. The uncertainty of a point is estimated by computing the deviation between all the observed rays in an interval delta_theta centered around this point and the rays that are estimated by the model for the corresponding angle.

Evaluation of the uncertainty in the polar domain. Each point in the point cloud is transformed in polar coordinates using a new center (mean of all points in the point cloud). The deviation between observed and estimated rays in the interval Δθ are used to measure the uncertainty of the final contour.

Prerequisites

This step relies on the outputs of transform polar.

JSON parameters

This step does not only require the polar images but will try to load and update the parameters.json file in the directory in which polar images are stored. Make sure this file exists at the root of the directory containing polar images.

You also need to provide one (or several models) for contour regression stored in the same directory.

Running the task

The task can be run with the following command line:

carotid [-v] transform contour OUTPUT_DIR CONTOUR_MODEL_DIR

where:

• OUTPUT_DIR (str) is the path to the directory containing the outputs.
• CONTOUR_MODEL_DIR (str) is the path to a directory where the model(s) for contour extraction are stored.

Options:

• --polar_dir (str) is the path to a different directory in which the polar images are stored. Default will assume that transform polar was run in the output directory.
• --config_path (str) is the path to a config file defining the values of the parameters.
• --participant (List[str]) restricts the application of the transform to this list of participant IDs. Default will perform the pipeline on all participants with a raw image.
• --device (cuda|cpu) is the device that will be used to perform the forward pass of the U-Net. Default will try to find cuda, and use cpu if it is not available.
• --force is a flag that forces the application of the transform in the chosen output directory, even if the transform was already performed in this folder.

verbosity

To increase the verbosity of the algorithm, add -v right between carotid and transform. Debug outputs can be obtained with -vv.

Default parameters

The parameters available are linked to the computation of the uncertainty:

• dropout (bool) if True, the dropout layers will be activated Default: False.
• n_repeats (int) is the number of times each polar image is processed by each network. This repetition is performed only if dropout is set to True. Default: 20.
• delta_theta (float) Default: 0.0625.
• single_center (bool) if True, only the first element of the batch of polar images will be considered (which corresponds to using the original center only). Default: False.
• interpolation_method (polynomial|mean) is the interpolation method chosen to find the final contour from the set of contours as well as the uncertainty of each point. If there is more than one center, polynomial it will be polynomial and corresponds to the method described in the introduction. If mean is chosen, each angle will be associated with the mean (final contour) and standard deviation (uncertainty) of its distances,.

Outputs

Output structure for participant participant_id:

<output_dir>
├── parameters.json
└── <participant_id>
        └── contour_transform
                ├── left_contour.tsv
                ├── right_contour.tsv
                └── spatial_metadata.json

where:

• parameters.json is a JSON file summarizing the parameters used to perform this transform and eventually preceding ones.
• spatial_metadata.json is a JSON file storing the spatial metadata of the corresponding raw image (size and affine).
• <side>_contour.tsv is a TSV file including all the points of all contours with the following structure:

label	object	x	y	z	deviation
internal	lumen	130	80	340	2.490
internal	lumen	131	80	341	3.051
...	...	...	...	...	...
external	wall	420	57	413	1.613
